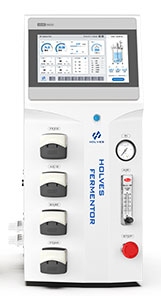

Eu210 Fermenter-HOLVES

	SIMATIC-1200 High-end processor ● Adopt Siemens the latest 1200 series high-end processor, in line with international standard ● Modular design and scalable function, scalable Smart200 module ● Integrated PROFINET, network and other buses are used for remote use, and the control is accurate and fast
	Watson-Marlow High precision variable speed flip pump ● Easy to use and strong stability ● Step electrode adjustable speed, standard bus communication control ● FOAM, ACID, BASE, FEED four-way pump can be customized and interchangeable

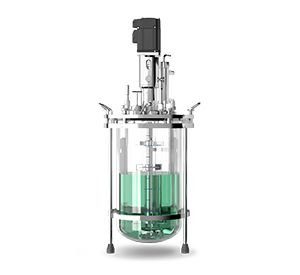

	Comparable to Imported Manufacturing Process of Vessel ● The design ideas of vessel derived from Sartorius and Applinkon, replaceable vessel ● Stable air-tightness, convenient for laboratory operation with quick disassembly and assembly ● Stainless steel material of AISI 316L with fine grinding and electrolytic polishing, the overall manufacturing process is comparable to imported products from abroad
	The most powerful Eu-M controller ● Integrated vessel cold water temperature control, condenser cold water temperature control ● Scalable: exhaust analysis, ORP, weighing balance, Biomass analysis, etc ● Built-in HF-control V2.2 software, can be implemented online monitoring, recording, curve display ● It can be matched with Analysis software HW-Analysis, V1.0 ● External OPC XML DA VIA Ethernet data communication can be connected

S/N	Category	Technical Parameters
1	Vessel	● Full volume: options include 3L, 5L, 7L,13L. No need to replace the controller ● Liquid volume: Max. 80% ● Design pressure: Max 0.15Mpa ● Fermentor lid inlets: Air inlet, Four-in-one feed inlet, Temperature tube, Cooling coil, pH/DO electrode inlet, Feed inlet, Alternate inlet, offgas condenser(Detachable)
2	Stirring system	● Servo motor with high precision and low noise. Special mechanical seal ● RPM: 0~1200rpm ±1rpm ● Fifteen sections speed: the program sets the required speed of each section
3	Temperature control system	● Electric heating mode of thermal blanket ● 24V safe voltage ● Temperature control range: Cooling water+5°C~65°C ±0.1°C ●Temperature sensor: Imported PT100 platinum electrode (quick disassembly resistant to high temperature)
4	Cold water module	● Integrated Cla-M controller, independent module ● Communication with host PLC, electromagnetic valve control the flow-off ● Cold water connector adopts imported self-locking quick coupling, which contains self-locking valve
5	Defoaming system	● Mechanical defoaming paddle with rake and compression ● Defoamer: Flow addition by peristaltic pump ● High-sensitive defoaming electrode
6	pH	● Range: 2.00~12.00pH, precision: ±0.02 ● Sterilization temperature: 0~130°C ● Controllor: HN-K integrated transmitter with filter, signal isolator and RS-485 communication
7	DO	● Range: 0~200%, Precision: ±0.1% ● Sterilization temperature: 0~130°C ● Controllor: HN-K integrated transmitter with filter, signal isolator and RS-485 communication
8	Eu-M Controller HF-Control v2.2 control system	● 10 inch HMI touch screen, brightness>350 cd/m² ● Siemens SIMATIC - 1200 Series high-end processor ● Low voltage electrical appliances use schneider and other international well-known brands ● HF-Control V2.2 embedded control software configuration for full local operation ● FOA, pH, DO, T can realize automatic and manual control ● Curve display, historical data records and USB export functions of RPM, pH, DO, T ● Four-way Air intake, O?, N?, CO? control and display (with option) ● Online display: OUR, CER, Kla, RQ (with option) ● Scalable: ORP, biomass, balance, external peristaltic pump, exhaust analyzer (including imported and domestic), etc ● It can be used with the Analysis software HW-Analysis V1.0 ● External OPC XML DA via Ethernet data communication
9	Air inlet system	● Air inlet: Air, Quick disassembly structure ● Imported glass rotor flowmeter ● Annular gas distributor, Optional microporous bubble distributor
10	Sampling	● Sterile sampling system: autoclave sterilization ● Syringe negative pressure design: remove bacteria contamination during sampling ● Dual design: users can also use traditional flame inoculation method
11	Power	● Input: AC110~240v/1.2kw ● Output: Motor, thermal blanket, peristaltic pump and other power parts use 24V safety voltage

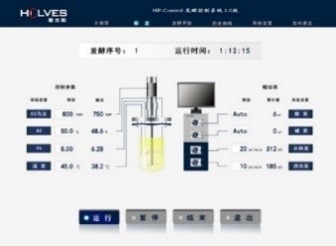

	Computer analysis software HW-Analysis V1.0 Extended computer control for remote monitoring, data storage, retrieval, and analysis of Ethernet communication connections Capable of displaying and defining calculations for CER, OUR, and RQ

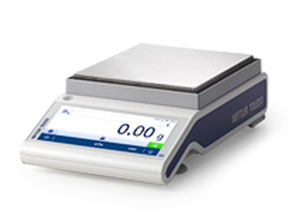

	Feeding and weighing system Brand: METTLER-TOLEDO Maximum weighing: 2200g Precision: 0.01g Control: Eu-M main controller control Association: Association control through feeding can customize amount

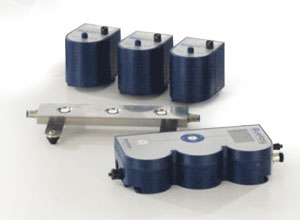

	Exhaust gas analyzer Brand: German BlueSens CO? range: 0-10%, 0-25%, 0-50% optional O? range: 0.1-25%, 0.1-50% optional Precision: 3% of measured value, 0.2% of range Can be display online: OUR, CER, RQ

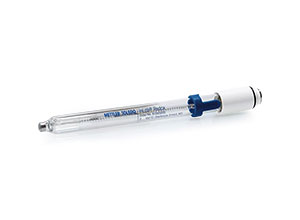

	ORP motor Brand: METTLER-TOLEDO High temperature sterilization: -30°C-130°C Transmitter: HN-K integrated transmitter, including filtering and self-calibration, RS-485 communication Eu-M Controller Controls and Settings

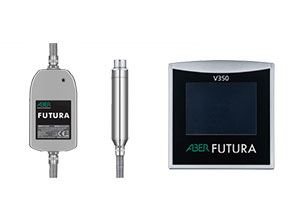

	Living cell online concentration ABER-Biomass imported living cell online concentration detection Real-time online monitoring, of the concentration, density, dry weight of living cells and biomass volume, capacitor size, conductivity size

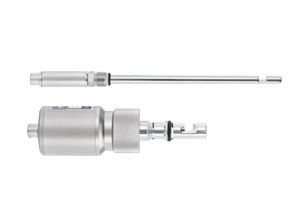

	Online OD Imported brand from Germany, the same style as Sartorius Interface Pg13.5, length: 120mm Measurement wavelength: 730nm~970nm Optical path length OPL: 1~1000mm Online determination of OD value, data and curve display, compare the data with the fermentation process
